5/4x4 Garapa Shiplap Soffit board profile diagram
Soffit

5/4x4 Garapa Shiplap Soffit

This 5/4x4 Garapa soffit board (Shiplap profile) combines the rich grain of Garapa (Brazilian Ash) with 1,650 Janka hardness, making it ideal for exposed eave linings and covered ceilings that endure for decades. The overlapping shiplap profile sheds water naturally and creates a classic, weather-resistant look for eave linings, ceilings, and covered areas. In stock and ships nationwide — order 5/4x4 Garapa soffit boards online or call 1-844-674-4455 for expert guidance.

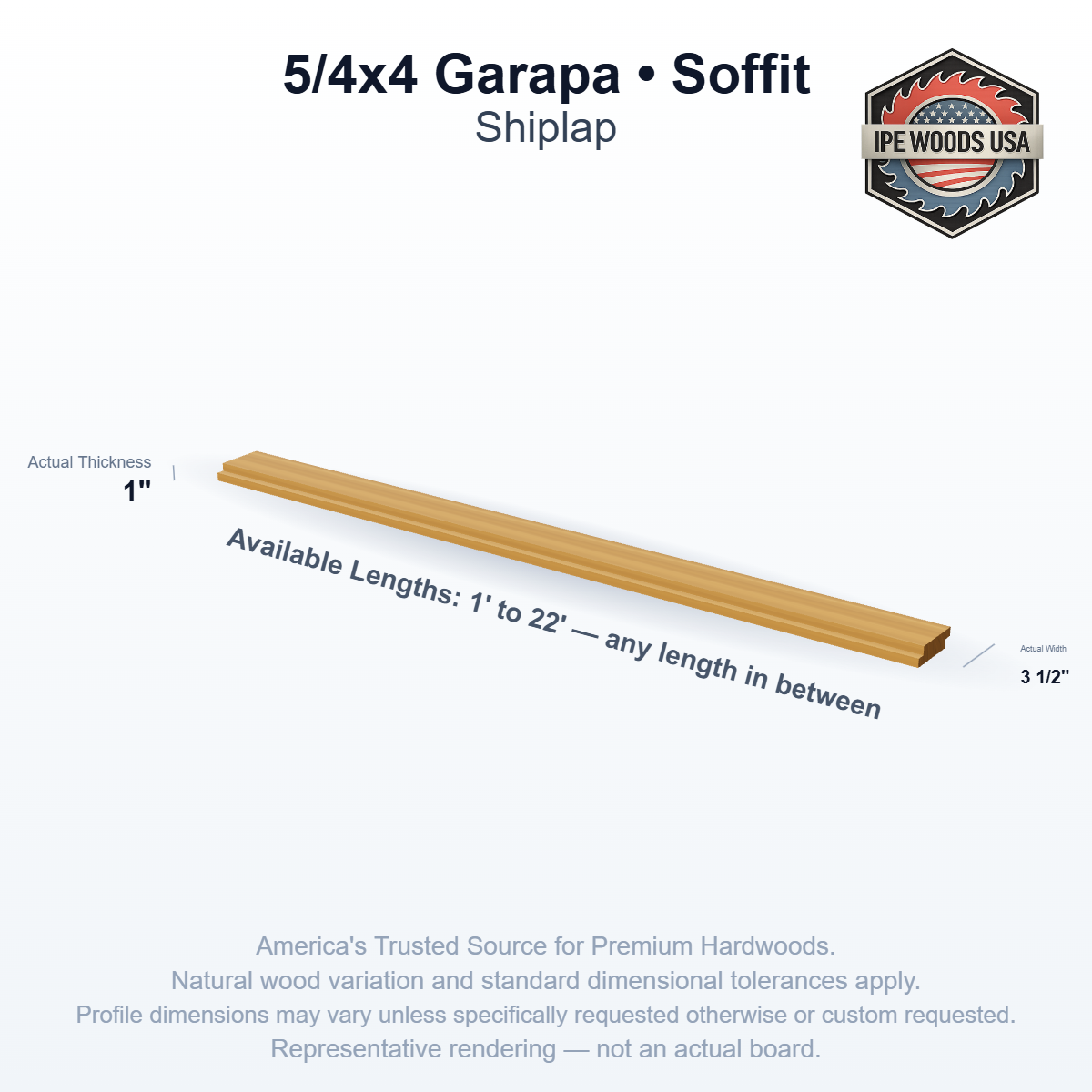

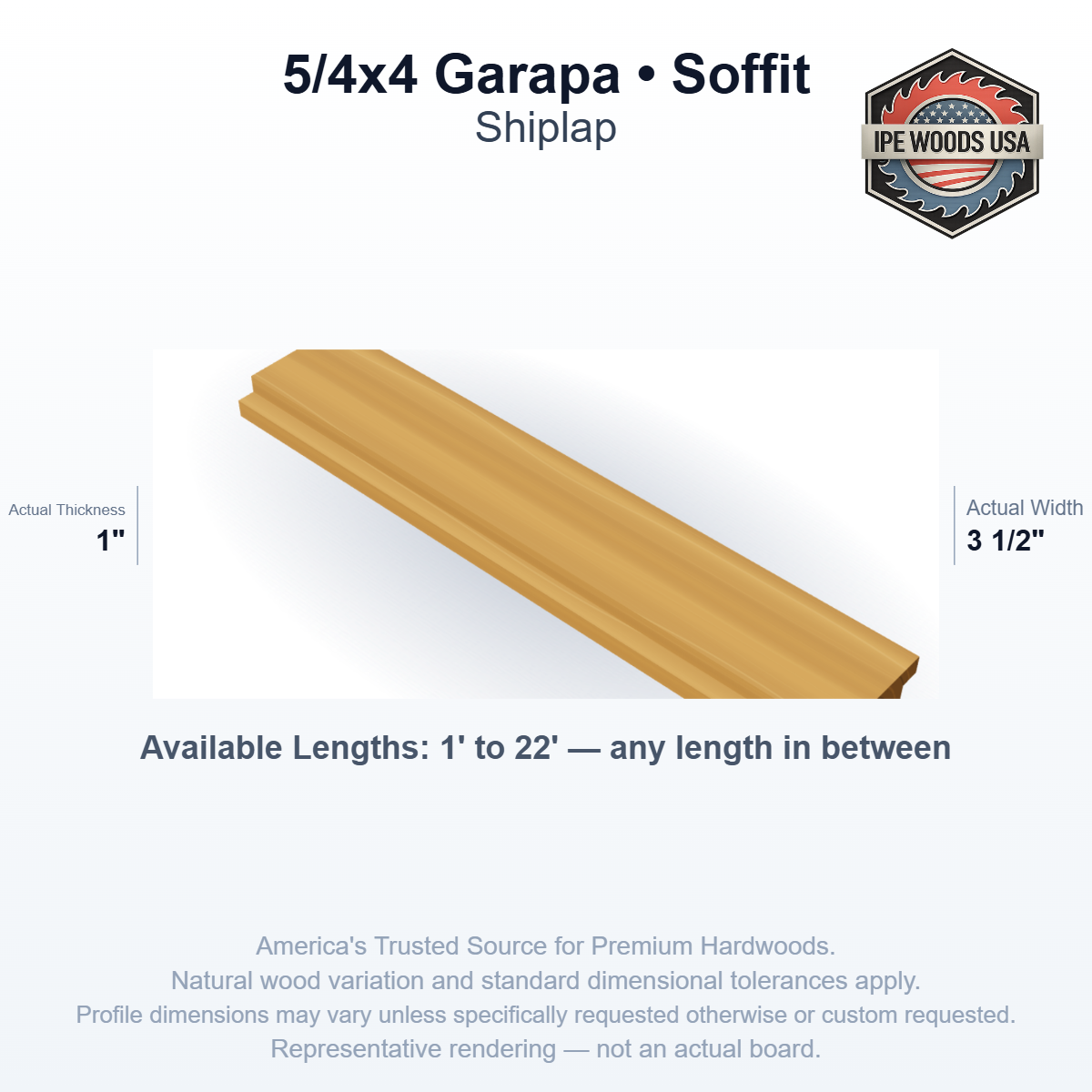

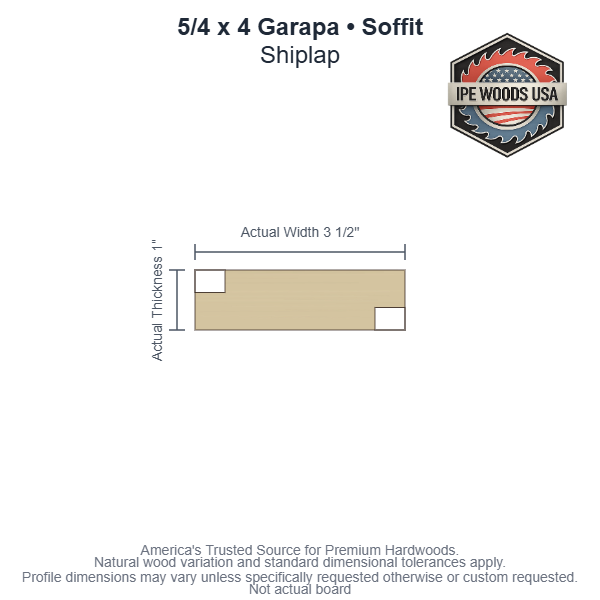

5/4 x 4(1"×3.5" actual)[25.4mm × 88.9mm]
Contractor Trusted
Expert Backed
Ships Nationwide
SKU: GARA-54X4-SHIP-SB-L1

Configure Your Order

Select profile, grade, and length below to see live pricing

Durable, Dimensional Stable, and Aesthetic Solutions for Outdoor Spaces

Shiplap

Select and Better is our standard grade

Length Guide

Available lengths: 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20, 21, 22′

Estimated Shipping Weight
Weight per linear foot:1.70 lbs/LF
1' board:1.7 lbs

5/4x4 Garapa Shiplap Soffit — Complete Guide

Everything you need to know about shiplap garapa soffit

About 5/4x4 Garapa Shiplap Soffit

Garapa lumber in a shiplap profile is an optimal choice for soffit applications due to its excellent dimensional stability and inherent durability. This hardwood species is naturally resistant to moisture, making it well-suited for the fluctuations of an outdoor environment. The shiplap profile contributes to seamless installation, ensuring clean lines and compatibility with ventilation systems, while enhancing the overall aesthetic of the structure.

  • Dimensional stability suitable for outdoor applications
  • Exceptional durability and moisture resistance
  • Shiplap profile allows for clean lines and enhances ventilation
  • Ideal for residential and commercial soffit installations

Key Benefits

Durable Performance

Garapa's high density and Janka hardness provide outstanding resistance to denting and wear, ensuring long-lasting functionality even in challenging environments.

Natural Resistance

This wood is resistant to insect damage and rot, making it ideal for exposure to the elements.

Low Maintenance

Garapa requires minimal maintenance due to its natural oils, which help preserve its beauty and prevent deterioration over time.

Aesthetic Appeal

With its varied grain patterns and warm hues, Garapa enhances the visual impact of architectural designs, particularly in soffit applications.

Technical Specifications

Janka Hardness

1650

Density

53 lbs/ft³

Durability Rating

Class 1 (very durable)

Dimensional Stability

Excellent, with minimal movement in response to humidity fluctuations

Installation Guide

Difficulty:
Moderate

Key Tips:

  • Ensure proper ventilation gaps for longer-lasting performance
  • Use stainless steel or coated fasteners to prevent rust
  • Leave adequate spacing for expansion and contraction

Recommended Tools:

Power drill
Saw (circular or miter)
Level
Tape measure

Maintenance & Care

Cleaning

Clean regularly with a mild soap solution and rinse thoroughly; avoid harsh chemicals that can damage the wood surface.

Finishing

Apply a UV-protective finish to maintain the wood's color and resistance to the elements; reapply every few years as needed.

Weathering

Over time, Garapa can develop a silvery patina if left unfinished; applying a finish will retain its original color.

5/4x4 Garapa Shiplap Soffit — Frequently Asked Questions

A 5/4x4 Garapa board weighs approximately 1.70 lbs per linear foot. Garapa has a density of about 52 lbs/ft³, making it one of the densest commercially available hardwoods. A 12-foot 5/4x4 Garapa board weighs approximately 15 lbs. Always factor weight into your structural and shipping calculations.

5/4x4 Garapa soffit has an expected service life of up to 30+ years when properly installed. This is 3-5× longer than pressure-treated pine and 2-3× longer than cedar. Garapa achieves this exceptional longevity through its 1,650 Janka hardness and Class 1 durability rating, providing built-in resistance to rot, decay, insects, and fungal growth without chemical preservatives.

5/4x4 Garapa soffit pricing varies by profile, grade, and board length. Select and Better grade boards typically range from $4-$12 per linear foot before shipping. While the upfront cost is higher than pressure-treated lumber, Garapa's up to 30+-year service life makes the lifetime cost per year significantly lower. Use the configurator above for exact pricing, or request a custom quote for large orders.

Yes — 5/4x4 Garapa wood soffit outperforms composite in hardness (1,650 vs ~200 Janka), lifespan (up to 30+ years vs 25-30 years), and heat resistance. Unlike composites, Garapa won't melt, warp in extreme heat, or fade significantly. While initial cost is similar ($8-15/LF installed), Garapa wood decking costs less over its much longer lifetime. Composites do offer lower upfront maintenance, but Garapa's natural beauty and durability make it the superior long-term investment.

Garapa is widely considered one of the best woods for 5/4x4 soffit boards. With a 1,650 Janka hardness rating, Class A fire-rated certification, and up to 30+-year lifespan, Garapa (Brazilian Ash) outperforms nearly every other commercially available wood species. Other excellent options include Cumaru (Brazilian Teak) and Massaranduba (Brazilian Redwood), but Garapa remains the industry benchmark for premium outdoor hardwood applications.

Garapa requires minimal maintenance. Without treatment, it naturally weathers to an elegant silver-gray patina over 6-12 months. To maintain the original warm brown color, apply a UV-inhibiting penetrating oil (like Ipe Oil or Penofin) once or twice annually. Cleaning involves periodic washing with a mild soap solution. No sanding, staining, or sealing is required for structural durability.

Garapa is DIY-friendly with proper preparation. Key requirements: (1) Always pre-drill all screw holes — Garapa is too hard for direct screwing. (2) Use only 305 or 316 stainless steel fasteners — standard hardware will corrode and stain. (3) Face-screw with stainless steel trim-head screws. (4) Allow boards to acclimate on-site for 5-7 days before installation. A compound miter saw with a carbide-tipped blade is recommended.

A nominal 5/4x4 Garapa board has actual finished dimensions of 1" × 3.5" (25.4 x 88.9 mm). The "5/4x4" is the nominal (rough-cut) size — after kiln drying and precision surfacing, all hardwood lumber finishes slightly smaller. This is standard across the lumber industry, similar to how a nominal 2×4 softwood measures 1.5" × 3.5". Always use the actual dimensions (1" × 3.5") when calculating material quantities and coverage for your project.

We responsibly, legally, and ethically source all our Garapa. We work only with suppliers who follow responsible forestry practices with full chain-of-custody transparency. Note: We are not FSC certified. Garapa trees grow naturally in diverse tropical forests and regenerate well under managed harvest. The extremely long lifespan (up to 30+ years) means fewer replacements compared to softwood or composite alternatives, reducing long-term environmental impact.

Shipping & Delivery

Nationwide delivery: We ship to all 50 states via LTL freight, flatbed, or terminal pickup

Typical lead time: 5-10 business days for standard orders (custom milling may add 2-3 weeks)

Shipping estimate: Final freight cost calculated at checkout based on your location and order size

Rush service available: Contact us for expedited milling and shipping options

5/4x4 Garapa Shiplap Soffit — Complete Buyer's Guide

Garapa, also known as Brazilian Ash, is a premium tropical hardwood sourced from South America (Brazil, Suriname, Guyana). With a Janka hardness rating of 1,650 lbf and a density of 53 lbs/ft³, Garapa is classified as Class 2 - Durable — one of the most durable commercial lumber species available. The heartwood exhibits blonde to golden yellow, darkening to honey amber with interlocked grain, medium texture, creating a striking natural appearance that improves with age.

Why Choose 5/4x4 Garapa Wood for Your Soffit?

Garapa soffit and porch ceiling boards create a warm, premium overhead aesthetic that vinyl and aluminum simply cannot replicate. The natural grain pattern adds architectural character to any covered outdoor space. Properly installed 5/4x4 Garapa soffit delivers a service life of 30+ years with minimal maintenance — an optional annual oil treatment preserves the original color, or you can let the Garapa wood weather to a distinguished silver-gray patina. Garapa carries a Class A - Low flame spread, making it suitable for wildfire-prone regions where code-compliant materials are required.

The 5/4x4 shiplap profile creates an overlapping joint with a distinctive shadow line between boards. Popular for siding, accent walls, and architectural cladding applications. All Garapa lumber is available in Select and Better grade with lengths ranging from 4′ to 20′. For detailed step-by-step instructions, consult our Garapa installation guide. Long-term care recommendations are covered in our Garapa maintenance guide.

5/4x4 Garapa Soffit — Installation & Coverage Specs

  • Recommended joist spacing: 16"–24" on center for 5/4x4 boards (1" actual thickness)
  • Fastener placement: Secure per profile requirements, one fastener per joist minimum
  • Board weight: A 12-foot 5/4x4 Garapa board weighs approximately 15 lbs (1.26 lbs/LF)
  • Coverage: Each 12-foot 5/4x4 board covers 3.5 sq ft of soffit surface (3.5" face width)
  • Pre-drilling required: Always pre-drill in Garapa — the 1,650 lbf hardness prevents direct screwing

Janka Hardness

1,650 lbf

Service Life

30+ years

Durability

Durable

Fire Rating

Class A

5/4x4 Garapa Soffit — Frequently Asked Questions

5/4x4 Garapa soffit has an expected service life of 30+ years when properly installed and maintained. This is 3-5x longer than pressure-treated pine and 2-3x longer than cedar. Garapa achieves this exceptional longevity through its natural density (Janka hardness: 1,650 lbf) and Class 1 durability rating, which provide built-in resistance to rot, decay, insects, and fungal growth — all without chemical preservatives.

Use 305 or 316 stainless steel screws for all Garapa installations — never use galvanized or coated deck screws, which will corrode and stain the wood. Pre-drill every hole using a countersink bit sized for your screw. For 5/4x4 boards, place screws approximately 1" from each edge and 3/4" from board ends. A combination drill/driver with a clutch setting prevents over-driving into this extremely hard wood.

5/4x4 Garapa soffit pricing varies by profile, grade, and board length. 5/4x4 Shiplap boards in Select and Better grade typically range from $4-$12 per linear foot before shipping. While the upfront cost is higher than pressure-treated lumber, Garapa's 30+ years service life makes the lifetime cost per year significantly lower. Use our online configurator above to see exact pricing for your selected options, or request a custom quote for large orders.
