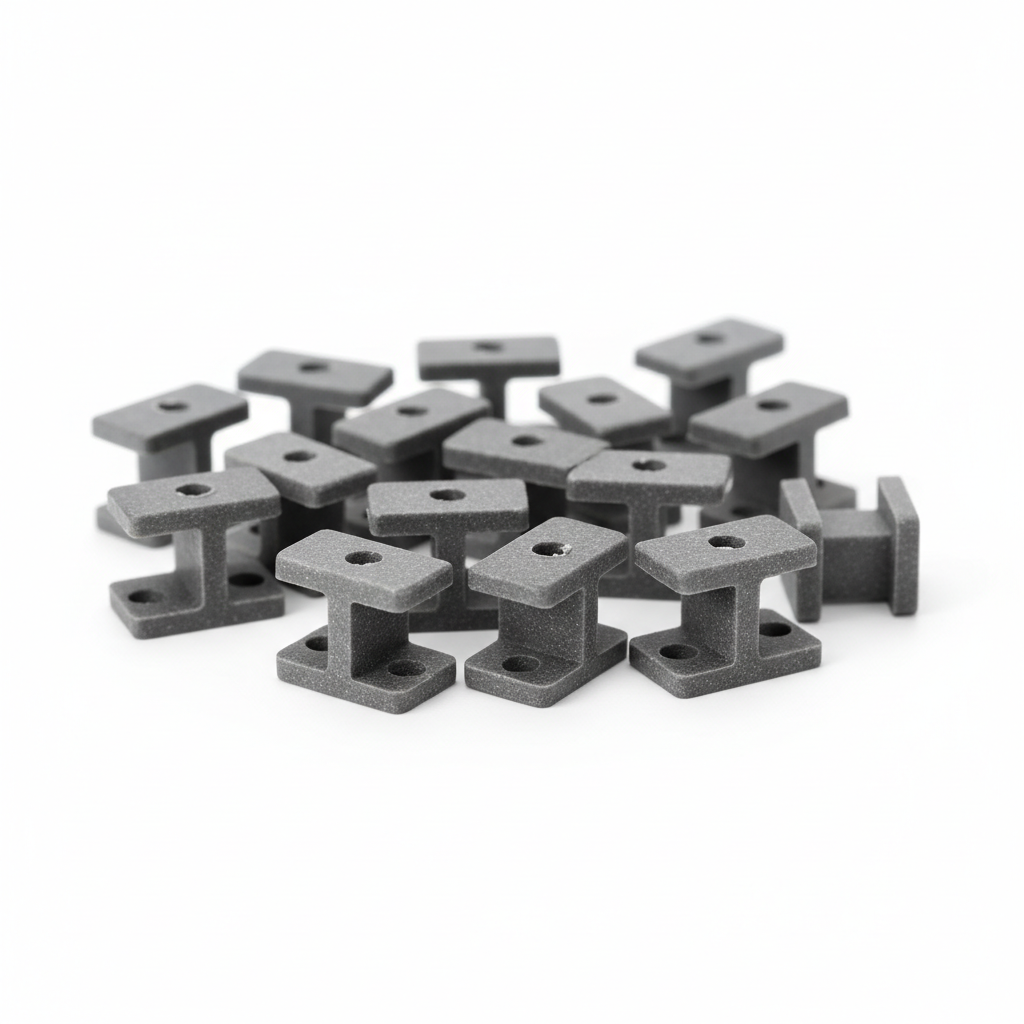

Not the actual product photo. Real product photography coming soon. Specifications and pricing below are accurate.
Viking Rainscreen Clip – On Batten
On-Batten rainscreen clip for hardwood siding installation. Install furring strips (battens), secure the clip to the batten, slide the siding board into place, and repeat. Each marine-grade aluminum clip includes a 316 stainless steel screw (#7 x 2-1/4").
Key Features
- Marine-grade aluminum
- 316 stainless steel screw included
- Creates uniform board spacing
- On-Batten mounting
Kit Contents
100 marine-grade aluminum clips, each with a 316 stainless steel screw (#7 x 2-1/4")
Installation Tip
Install furring strips first, then secure clips to battens before sliding siding boards into place. Sold in units of 100.
Viking Rainscreen Clips are engineered to simplify hardwood siding installation while ensuring proper spacing and long-term performance. On-Batten configuration: install furring strips, secure clip to batten, slide siding board into place, repeat. Each marine-grade aluminum clip includes a 316 stainless steel screw (#7 x 2-1/4") for corrosion-resistant performance. Automatically creates uniform spacing between boards, promoting proper airflow and moisture management behind the siding. For large quantities, contact us for potential volume discounts. Sold in units of 100.
Available Options
Choose your preferred options and quantity below.
On Batten
100 Box
VIK-RC-ON-100
$125.00
per unit
About this product
The Viking Rainscreen Clip (On Batten) is a hidden fastening solution specifically designed for installing pre-grooved hardwood siding over wood furring strips. It solves the aesthetic and structural challenges of face-pinning dense hardwoods by providing a secure, invisible attachment point that allows for natural wood movement. This system is intended for architects and contractors creating high-end, ventilated rainscreen facades using premium tropical timber.
Manufacturer Specifications
- Material
- 304 Stainless Steel
- SKU
- VIK-RC-ON-100
- Gap Spacing
- 1/4 inch
- Installation Type
- On Batten (Wood Furring)
- Compatible Board Profile
- Standard Rainscreen / Siding Profile with side grooves
- Fastener Quantity
- 100 clips per box
Best used for
- 1Residential Ipe or Cumaru rainscreen siding projects where a clean, architectural finish without visible fasteners is required.
- 2Commercial vertical siding installations using Garapa or Tigerwood to create a modern, ventilated building envelope.
- 3Coastal siding applications for Massaranduba or Red Balau where 304-grade stainless steel is necessary to prevent salt-air corrosion.
- 4Constructing modern fencing or privacy screens where the 'On Batten' clip can be utilized to hide hardware between slats.
Pro tips for dense hardwoods
- Ensure all tropical hardwood siding is acclimated to the local humidity for at least 7 to 14 days prior to installation to minimize post-install shrinkage or expansion.
- End-seal all cut grain on siding boards with a wax-based sealer immediately after cutting to prevent checking and end-splitting.
- Verify that your wood battens are perfectly plumb and level before starting the first course, as the clip system relies on the precision of the underlying structure for a uniform finish.
- Apply a UV-protective hardwood oil to all four sides of the boards, including the grooves, before clicking them into place to ensure moisture stability.
Specifications
- Brand
- Viking
- Category
- Rainscreen Clips
- Kit contents
- 100 marine-grade aluminum clips, each with a 316 stainless steel screw (#7 x 2-1/4")
Per-option details
| Option | SKU | Piece count | Dimensions | Weight |
|---|---|---|---|---|
| On Batten | VIK-RC-ON-100 | 100 Box | — | — |
Piece counts and dimensions are as supplied by the manufacturer for each package option.
